Product Summary

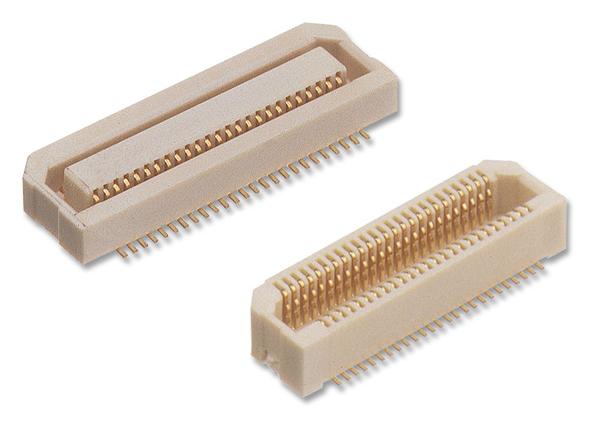

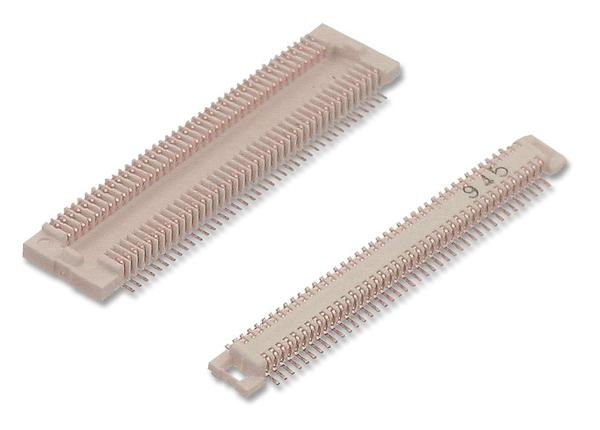

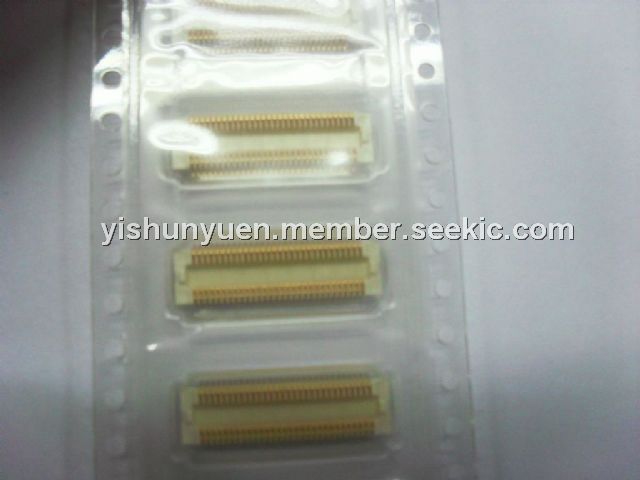

The AXK5F60347 is a narrow-pitch connector for board to board connection. It is suitable for cellular phones, DVC, digital cameras, etc.
Parametrics
Electrical characteristics: (1)Rated current: 0.5A/contact (Max. 10 A at total contacts); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 minute, condition: detection current: 1mA; (4)Insulation resistance: Min. 1,000MΩ (initial), condition: using 500V DC megger; (5)Contact resistance: Max. 90mΩ, condition: Based on the contact resistance measurement method specified by JIS C 5402.
Features
Features: (1)the connector is a two plece structure and 0.5mm pltch; (2)strong reslstance to adverse environment; (3)simple locking structure; (4)mating length 0.55mm; (5)the lower connector bottom surface construction prevents contact and shorts between the PCB and metal terminals; (6)automatic mounting inspection is facilltated by the gull-wing terminal shape which makes mounting verfication easy; (7)connectors for inspection avaliable.

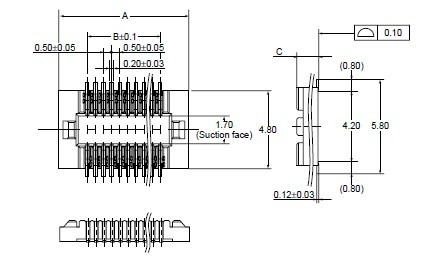

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

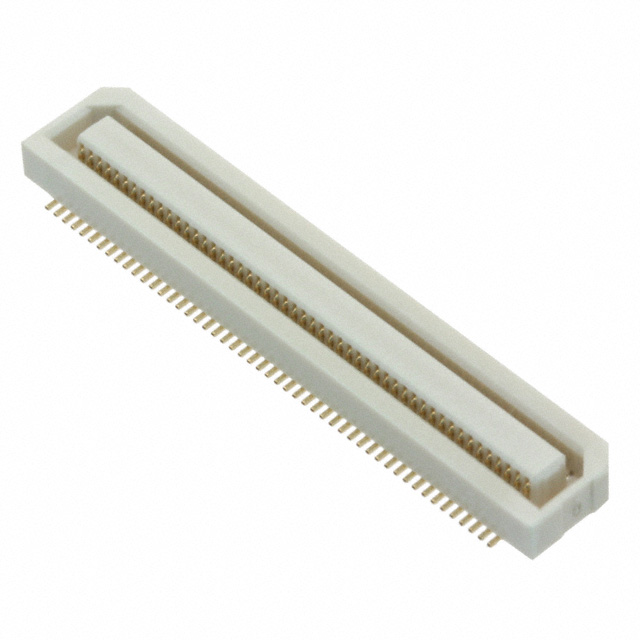

 AXK5F60347YG |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET BRD/BRD 60 POS 0.5mm |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AXK500135J |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK500137YG |
Data Sheet |
Negotiable |
|
||||||||||||
|
AXK500135P |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK500137YG |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AXK500137YG |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET BRD/BRD 100 POS 0.5mm |
Data Sheet |
|
|
||||||||||||
|
AXK500145J |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK500147YG |
Data Sheet |
Negotiable |
|
||||||||||||
|
AXK500145P |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK500147YG |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AXK500147BN1 |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET BRD/BRD 100 POS 0.5mm |
Data Sheet |
|
|
||||||||||||
