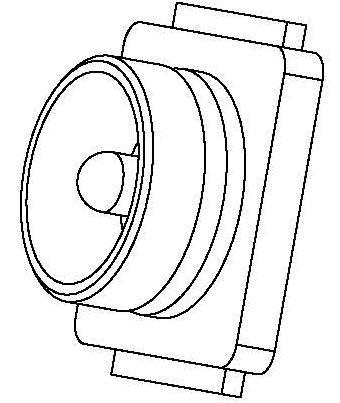

Product Summary

The A-1JB is a AMC Connector.

Parametrics

electric characteristics: (1)impedence:50Ω, normal; (2)frequency range:0GHz to 6GHz(VSWR 1.3 max.); (3)operating voltage:500Vrms; (4)contact resistence: center contact=20mΩ max. outer contact=10mΩ max.; (5)dielectric withstanding voltage:200Vac for 1minute, current leakafe 2mA max.; (6)insulation resistence:50 megohms min.

Features

Features: (1)temperature range:-40℃ to +90℃; (2)AMC interface is fully compatible with "U. FL" series product; (3)suitable for solder reflow process.

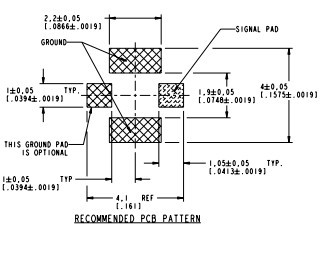

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A-1JB
A-1JB
Amphenol RF
RF Connectors AMC PCB JACK S/M T&R
Data Sheet
0-1: $0.37
1-10: $0.34
10-25: $0.26
25-100: $0.23
