Product Summary

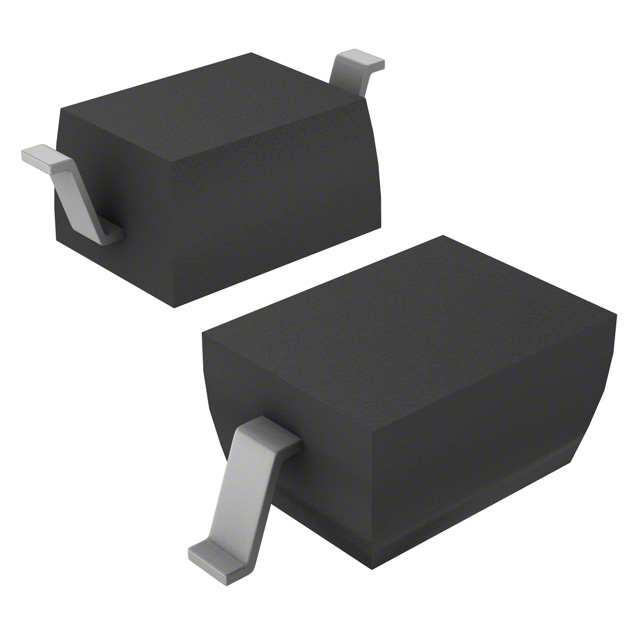

The CUS03 is a rectifier. It is suitable for switching mode power supply applications and portable equipment battery application.
Parametrics
Absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 40V; (2)Average forward current, IF (AV): 0.7A; (3)Peak one cycle surge forward current, IFSM: 20 (50 Hz) A; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature range Tstg: -40 to 150℃.
Features
Features: (1)Forward voltage: VFM = 0.52 V@IF = 0.7 A; (2)Average forward current: IF (AV) = 0.7A; (3)Repetitive peak reverse voltage: VRRM = 40 V; (4)Suitable for compact assembly.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

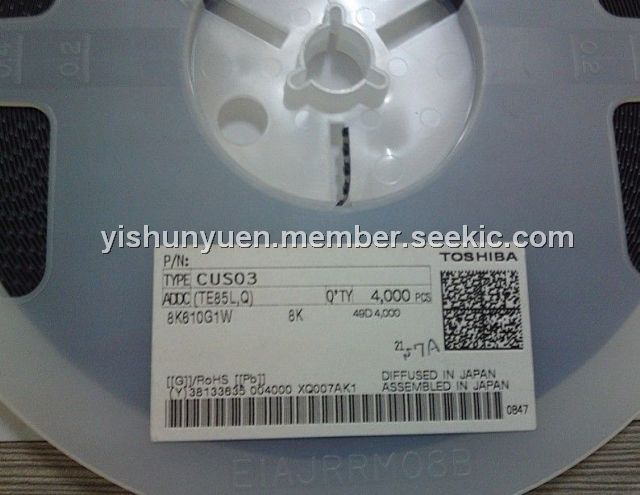

 CUS03(TE85L,Q,M) |
Toshiba |
Schottky (Diodes & Rectifiers) 30V Vrrm 1.0A IF 20A 0.52V VFM |
Data Sheet |
|
|
||||||||||||
 |
CUS03(TE85L,Q) |
Toshiba |
Schottky (Diodes & Rectifiers) Diode Schottky 40V 0.7A Vf=0.52V |
Data Sheet |
|
|
||||||||||||
