Product Summary

The AD574 is a complete 12-bit successive-approximation analog-to-digital converter with 3-state output buffer circuitry for direct interface to an 8- or 16-bit microprocessor bus.

Parametrics

Absolute maximum ratings: (1)VCC to Digital Common:0 V to +16.5 V; (2)VEE to Digital Common:0 V to –16.5 V; (3)VLOGIC to Digital Common:0 V to +7 V; (4)Analog Common to Digital Common :±1 V; (5)Chip Temperature:175℃; (6)Power Dissipation:825 mW; (7)Lead Temperature (Soldering, 10 sec):+300℃; (8)Storage Temperature (Ceramic):–65℃ to +150℃; (9)Storage temperature (Plastic):–25℃ to +100℃.

Features

Features: (1)Complete 12-Bit A/D Converter with Reference and Clock; (2)8- and 16-Bit Microprocessor Bus Interface; (3)No Missing Codes Over Temperature; (4)35μs Maximum Conversion Time; (5)Ceramic DIP, Plastic DIP or PLCC Package.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

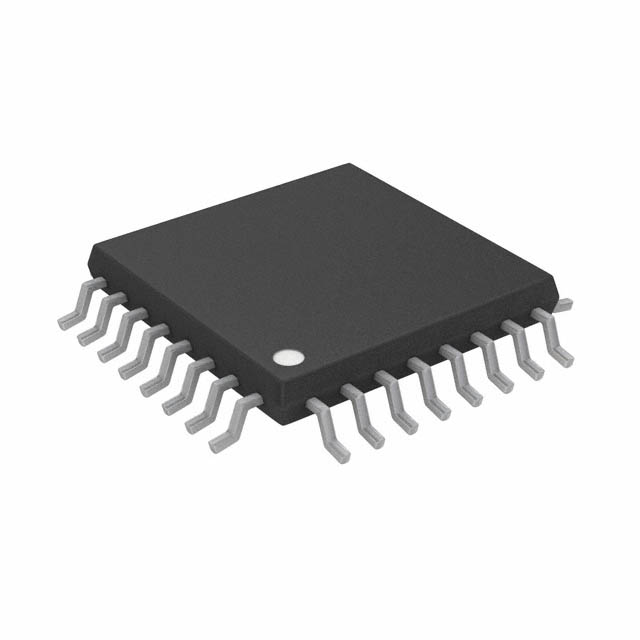

AD5744RCSUZ
AD5744RCSUZ

IC DAC 4CH 14BIT SER 1LSB 32TQFP
Data Sheet
0-1: $25.03
1-10: $23.40
10-100: $20.29
100-250: $18.94
250-500: $18.04
AD574AJD
AD574AJD

IC ADC 12BIT W/REF 28-CDIP
Data Sheet
0-13: $27.83
AD574AJD/+
AD574AJD/+
Analog Devices Inc.
IC ADC 12BIT W/REF/CLK 28-DIP
Data Sheet
Negotiable
AD574AJDZ
AD574AJDZ

IC ADC 12BIT W/REF 28-CDIP
Data Sheet
0-1: $29.78
1-10: $27.85
10-100: $24.15
100-250: $22.54
250-500: $21.46
AD574AKP-REEL
AD574AKP-REEL

IC ADC 12BIT W/REF/CLK 28-PLCC
Data Sheet
0-750: $20.20
AD574AKPZ
AD574AKPZ

IC ADC 12BIT W/REF/CLK 28-PLCC
Data Sheet
0-1: $27.75
1-10: $25.95
10-100: $22.50
100-250: $21.00
250-500: $20.00
AD574AKPZ-REEL
AD574AKPZ-REEL

IC ADC 12BIT W/REF/CLK 28-PLCC
Data Sheet
Negotiable
AD574AKNZ
AD574AKNZ

IC ADC 12BIT W/REF 28-DIP
Data Sheet
0-1: $29.25
1-10: $27.35
10-100: $23.72
100-250: $22.14
250-500: $21.08
