Product Summary
The U.FL-R-SMT(10) is one member of the U.FL series which designed as the ultra small SMT coaxial connector with low profile 1.9mm or 2.4mm mated height. It can be used in mobile phones, wireless LAN, mini-PCI, bluetooth, PDA, GPS, electronic measuring instruments, etc.
Parametrics
Characteristics: (1)Contact resistance: Center is 20 m ohms max, Outer is 10 m ohms max; (2)Insulation resistance: 500 M ohms min; (3)Withstanding voltage: No flashover or insulation breakdown.
Features
Features: (1)Nominal mated height of 1.9 or 2.4mm (Max. 2.0 or 2.5mm); (2)Small mounting area; (3)Light weight; (4)Accepts high frequency transmission.; (5)Automatic board placement; (6)Plugs are terminated with ultra-fine coaxial (fluorinated resin insulated) cable; (7)Simple connector mating / unmating; (8)Verification of the fully mated condition.

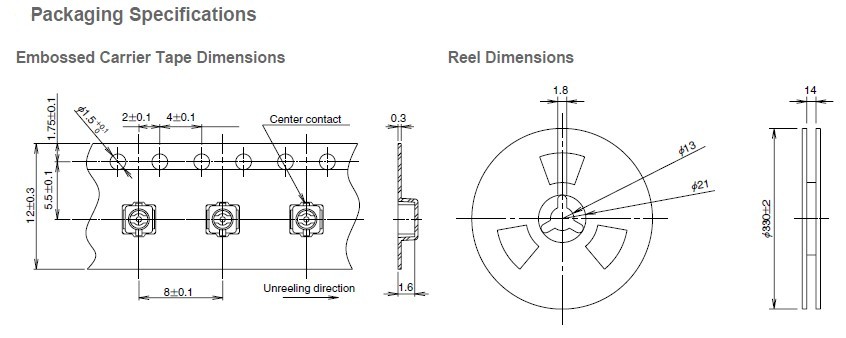

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 U.FL-R-SMT(10) |
Hirose Connector |
RF Connectors U.FL RECEPTACLE SMT GLD M CONT REEL |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
 |
U.FL |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
U.FL.2LP-068N2T-A-(200) |
Hirose Connector |
RF Cable Assemblies DOUBLE END COAX CBL BLK 1.13MM DIAMETER |
Data Sheet |
|
|
||||||||||||||||||
|
U.FL-2LP(V)-04N1-A-(1000) |
|
CABLE ASSEM UFL-UFL 1000MM 0.81 |
Data Sheet |
|
|
||||||||||||||||||
|
U.FL-2LP(V)-04N1-A-(110) |
Hirose Connector |
RF Cable Assemblies U.FL TO U.FL M ASBLY 110MM .081DIA WHITE |
Data Sheet |
|
|
||||||||||||||||||
|
U.FL-2LP(V)-04N1-A-(120) |
Hirose Connector |
RF Cable Assemblies U.FL TO U.FL M ASBLY 120MM .081DIA WHITE |
Data Sheet |
|
|
||||||||||||||||||
|
U.FL-2LP(V)-04N1-A-(130) |
Hirose Connector |
RF Cable Assemblies U.FL TO U.FL M ASBLY 130MM .081DIA WHITE |
Data Sheet |
|
|
||||||||||||||||||
