Product Summary
The PS7141-2A is a solid state relay containing GaAs LED on the light emitting side (input side) and MOSFETs on the output side. It is suitable for analog signal control because of their low offset and high linearity.
Parametrics
Absolute maximum ratings: (1)Forward Current (DC): 50 mA; (2)Reverse Voltage: 5.0 V; (3)Power Dissipation: 50 mW/ch; (4)Peak Foward Current2: 1 A; (5)Break Down Voltage: 400 V; (6)Continuous Load Current: 150 mA; (7)Pulse Load Current3 AC/DC Connection: 300 mA; (8)Power Dissipationx: 375 mA; (9)Isolation Voltage4: 1500 Vr.m.s.; (10)Total Power Dissipation: 850 mW; (11)Operating Ambient Temp: -40 to +80 ℃; (12)Storage Temperature: -40 to +100 ℃.
Features
Features: (1)2 channel type: (1a + 1a output); (2)designed for AC/DC switching line changer; (3)small package: 8 pin DIP; (4)low offset voltage; (5)low led operating current: (IF = 2 mA); (6)surface mount available: PS7141-2A.

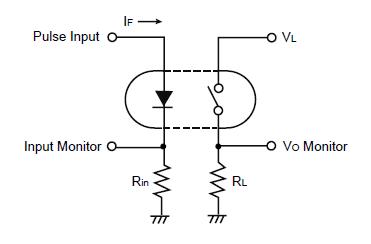

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS7141-2A |
CEL |
Solid State Relays USE 551-PS7141-2A-A |
Data Sheet |
Negotiable |
|
||||||||||||
|
PS7141-2A-A |
CEL |
Solid State Relays 2-Ch Normally Open |
Data Sheet |
|
|
||||||||||||
