Product Summary

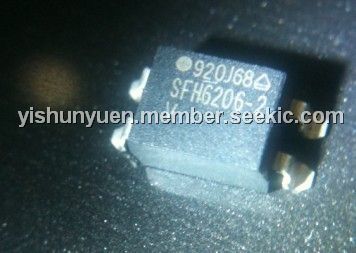

The SFH6206-2 (DIP) features a high current transfer ratio, low coupling capacitance and high isolation voltage. These couplers have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 or SMD package.

Parametrics

Absolute maximum ratings: (1)Reverse voltage: 6.0 V; (2)DC Forward current: ± 60 mA; (3)Surge forward current tp ≤ 10 μs: ± 2.5 A; (4)Power dissipation: 100 mW; (5)Collector-emitter voltage: 70 V; (6)Emitter-collector voltage: 7.0 V; (7)Collector current: 50 mA, tp ≤ 1.0 ms: 100 mA; (8)Power dissipation: 150 mW.

Features

Features: (1)Good CTR Linearity Depending on Forward Current; (2)Isolation Test Voltage, 5300 VRMS; (3)High Collector-emitter Voltage, VCEO = 70 V; (4)Low Saturation Voltage; (5)Fast Switching Times; (6)Low CTR Degradation; (7)Temperature Stable; (8)Low Coupling Capacitance; (9)End-Stackable, .100 "(2.54 mm) Spacing; (10)High Common-Mode Interference Immunity.

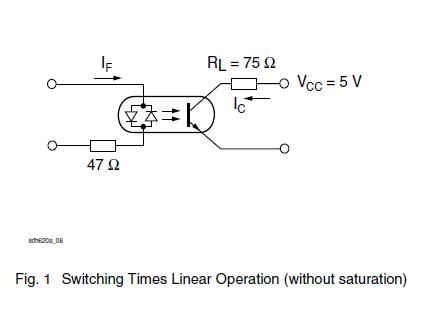

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SFH6206-2
SFH6206-2
Vishay Semiconductors
Transistor Output Optocouplers Phototransistor Out Single CTR 63-200%
Data Sheet
0-1: $0.30
1-10: $0.28
10-50: $0.26
50-100: $0.25
SFH6206-2T
SFH6206-2T
Vishay Semiconductors
Transistor Output Optocouplers Phototransistor Out AC-In CTR>63-200%
Data Sheet
0-1: $0.34
1-10: $0.30
10-100: $0.27
100-250: $0.25
SFH6206-2X001T
SFH6206-2X001T
Vishay Semiconductors
Transistor Output Optocouplers Phototransistor Out AC-In CTR>63-200%
Data Sheet
0-1: $0.37
1-10: $0.33
10-100: $0.29
100-250: $0.27
